Grill Barn door

Jiaxinyi Wrought Iron
CompareCompare
Category:

Door leaf

French style
Simple and beautiful
Small handle
CNC process
Powder coating
Hardware Kit



soft closing
Anti-jump
Powder coating

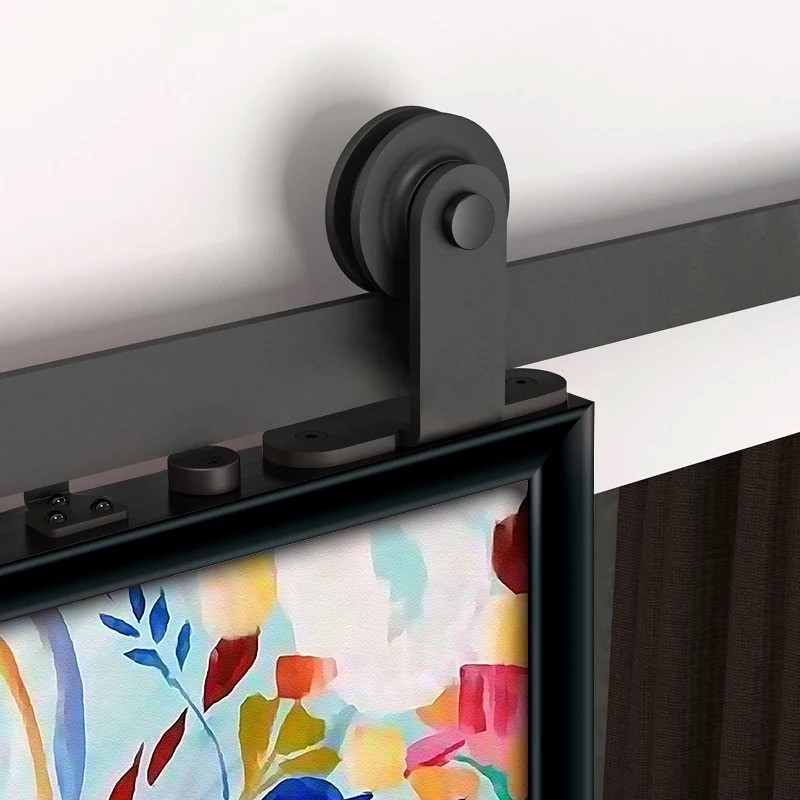

Sliding Wheel

Quite and smooth
Very durable

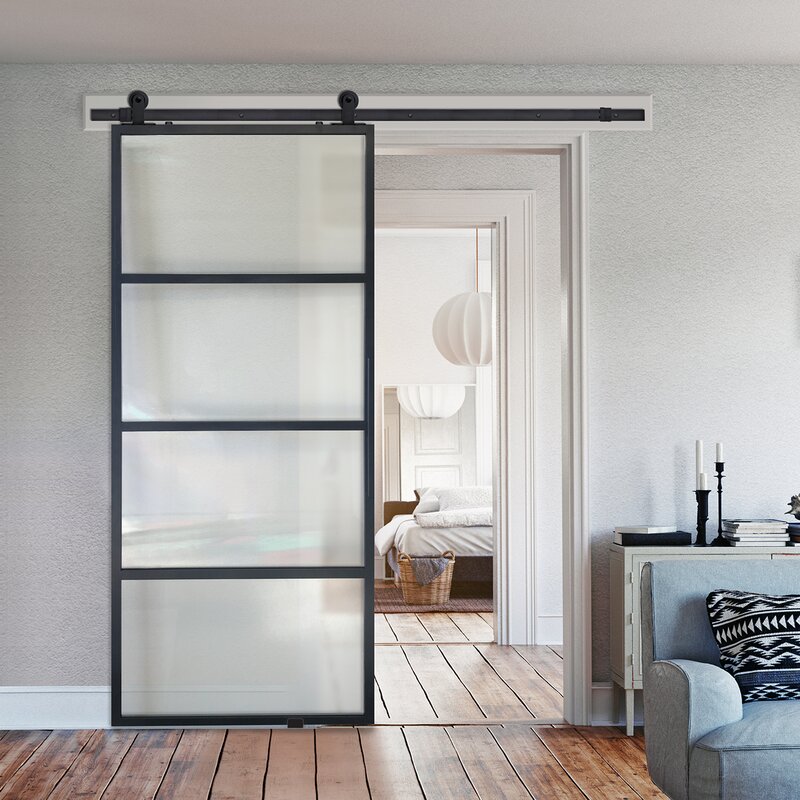

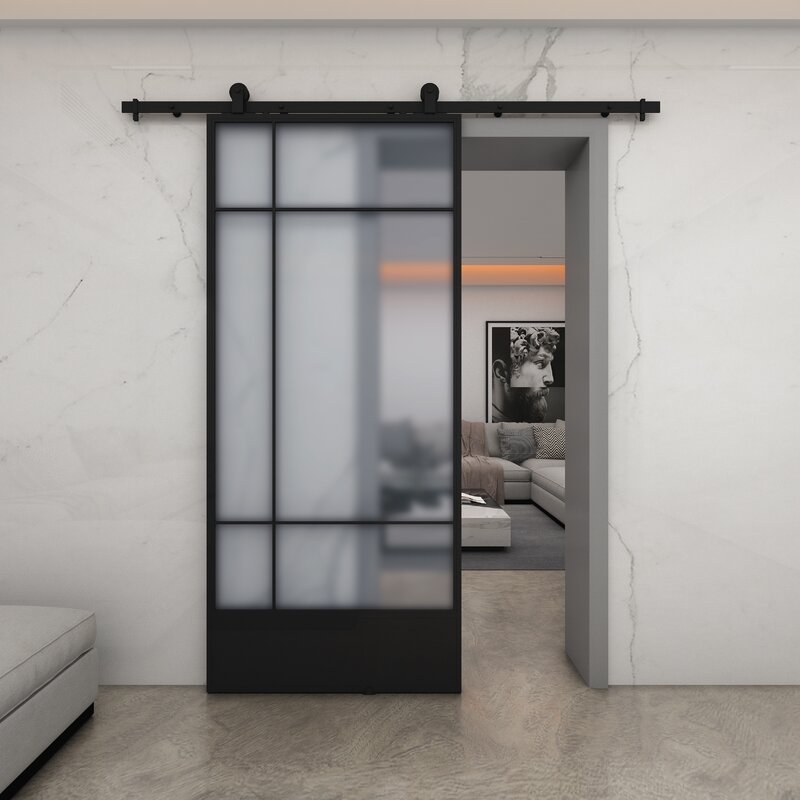

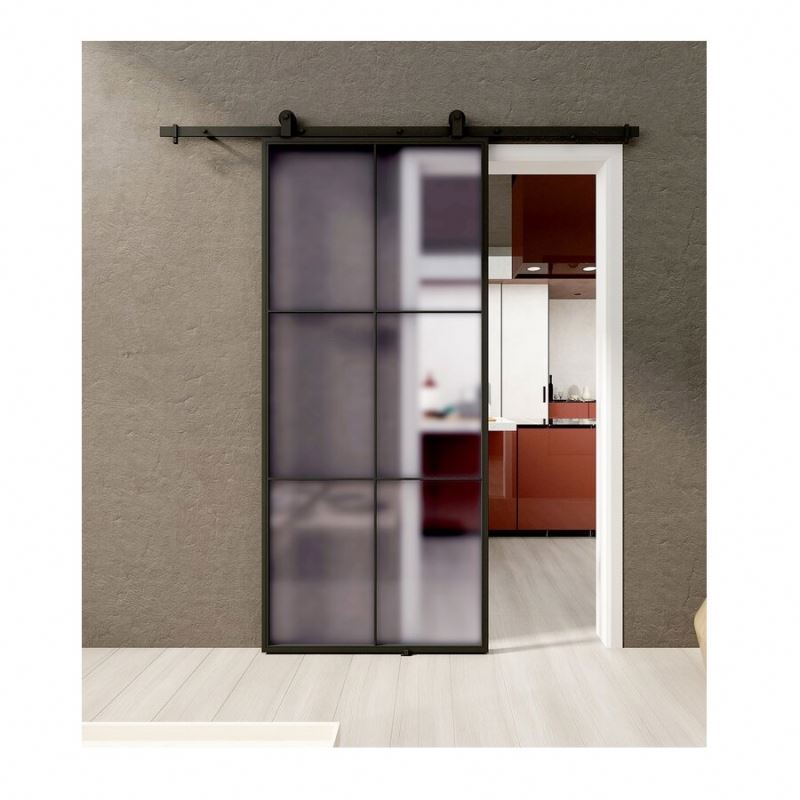

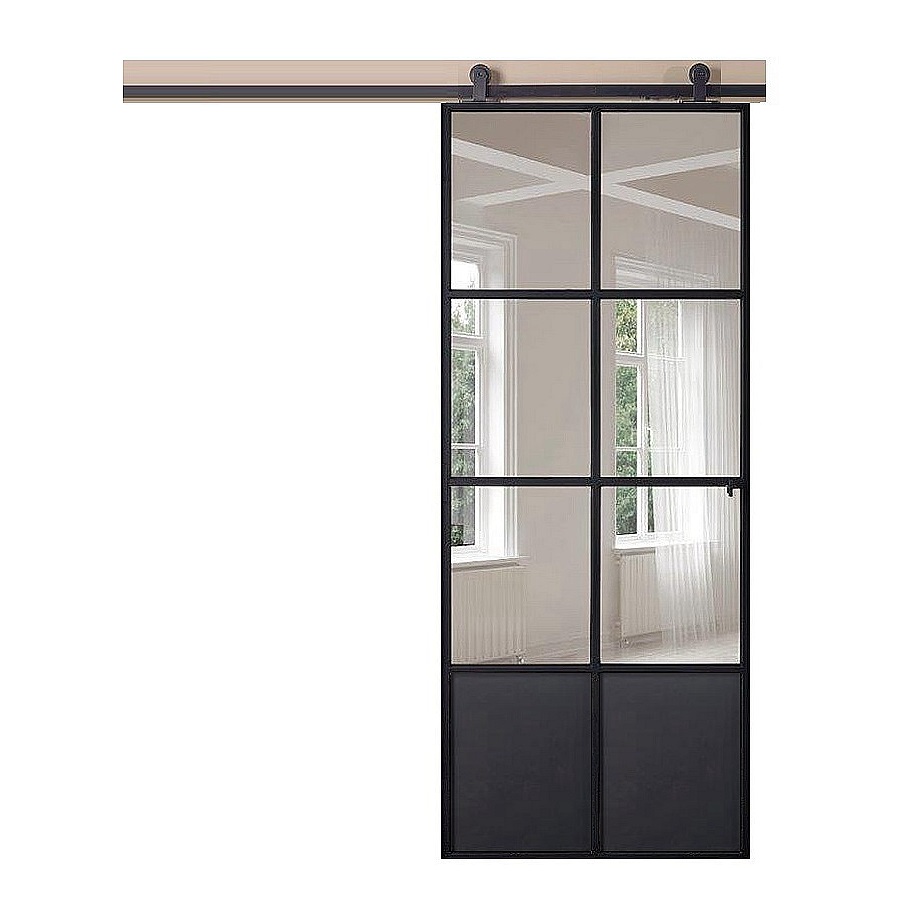

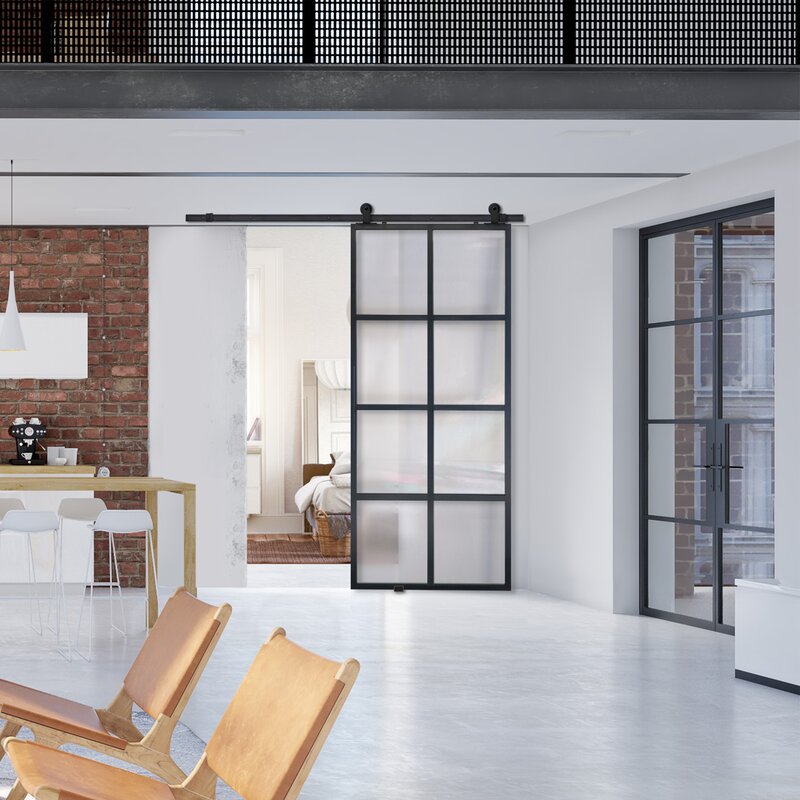

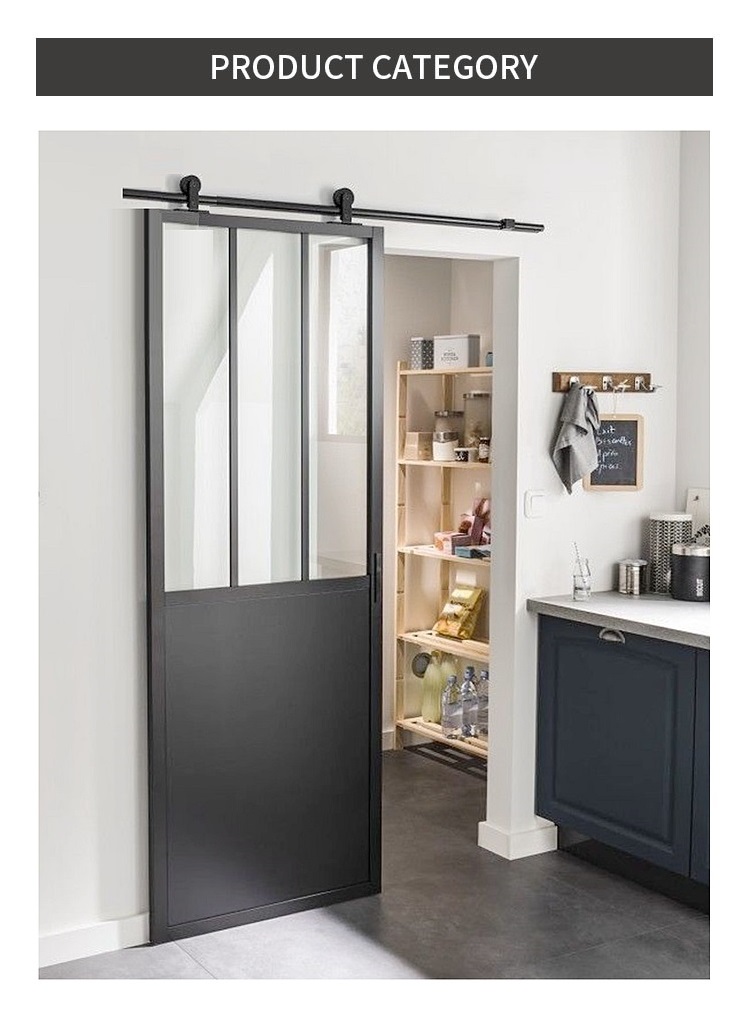

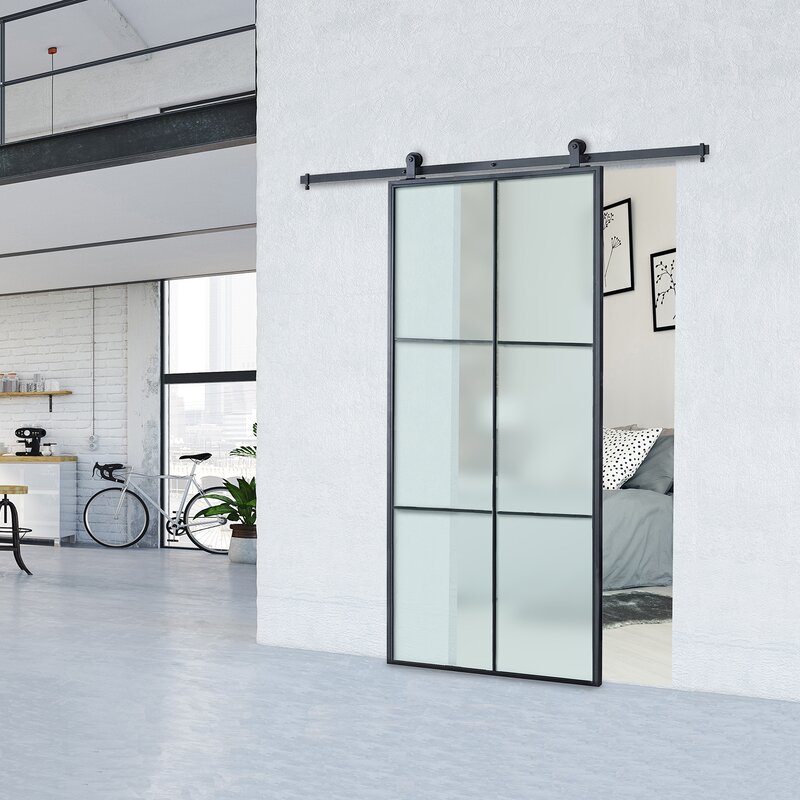

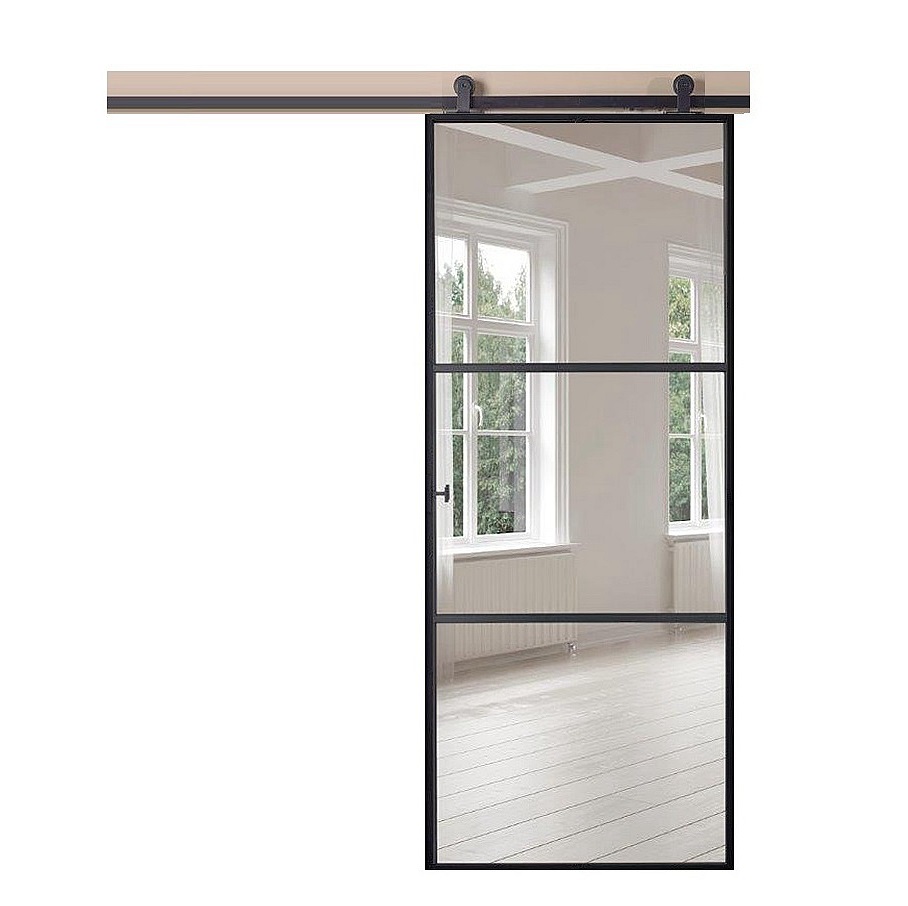

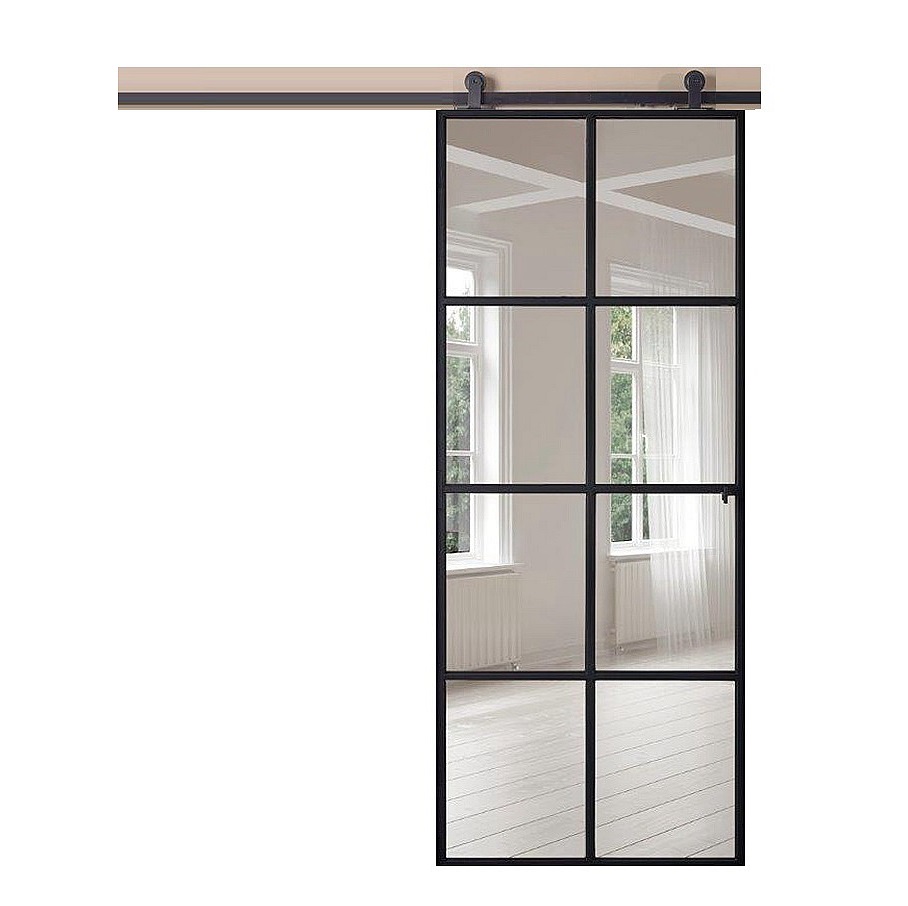

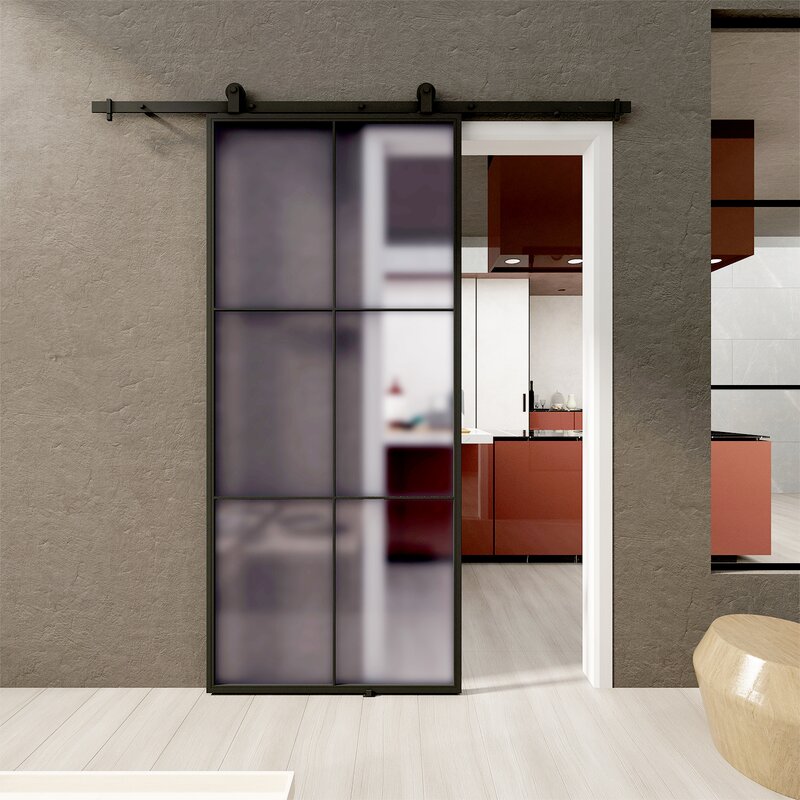

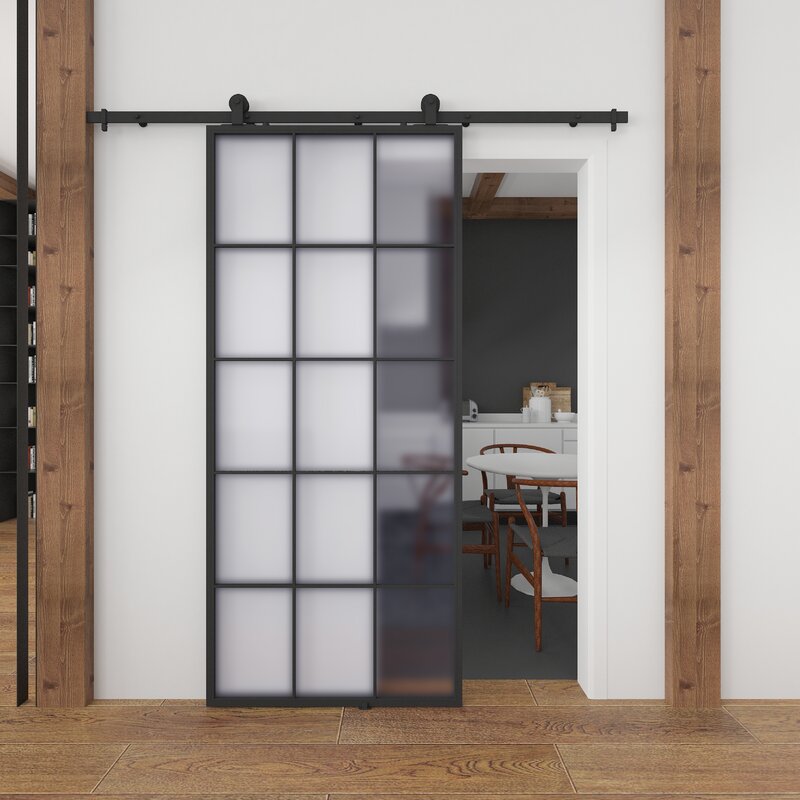

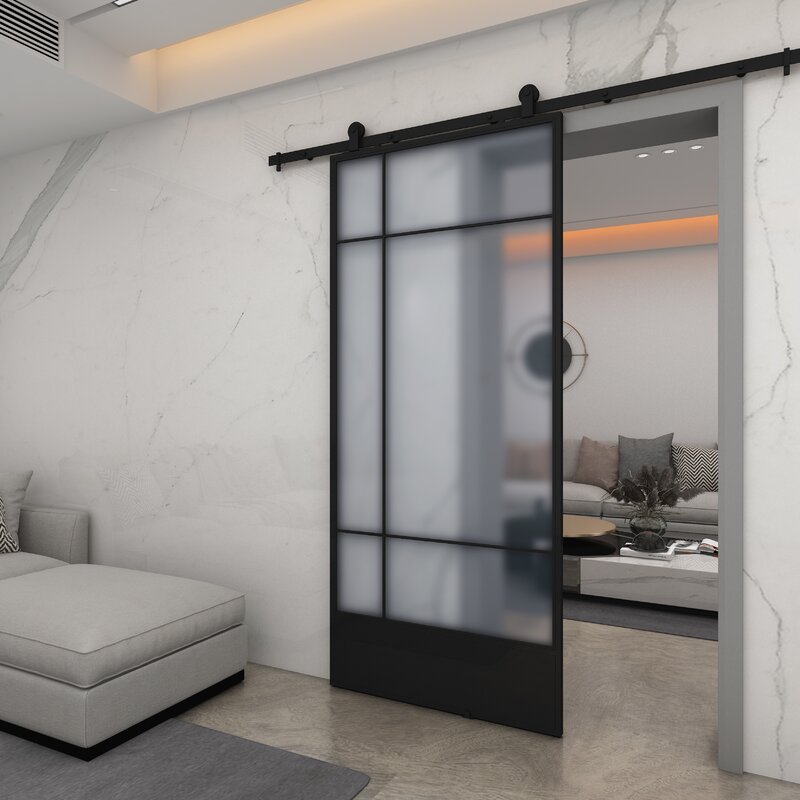

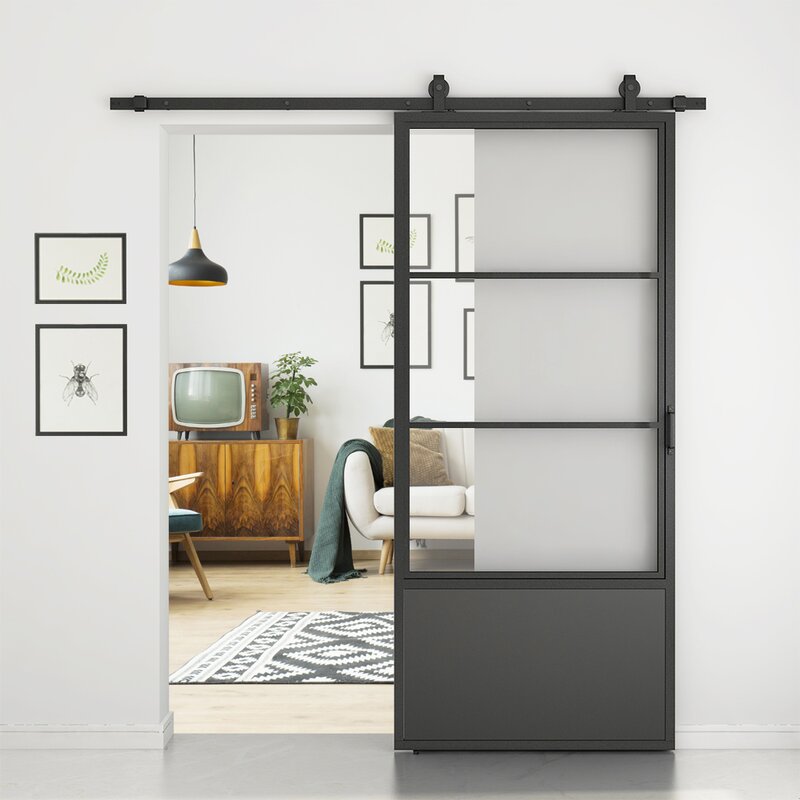

STEEL SLIDING DOOR WITH HARDWARE KIT
Series

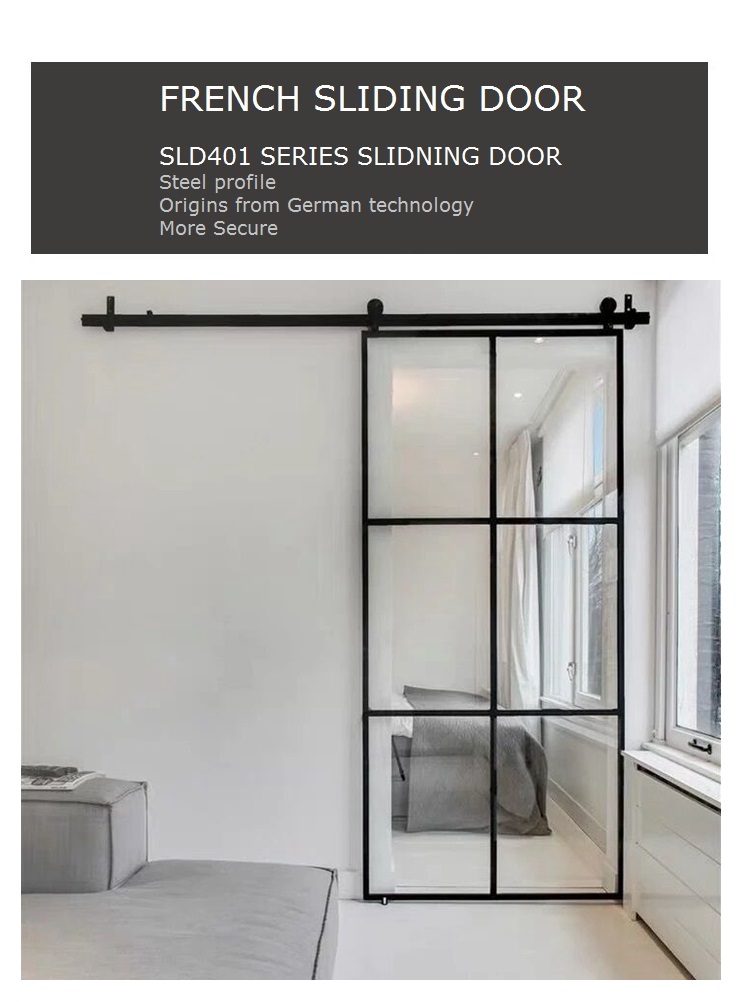

SLD401  Series Steel sliding door with Hardware kit
Material
Steel and Steel sheet
Thickness
1.0mm to 2.5mm  thickness

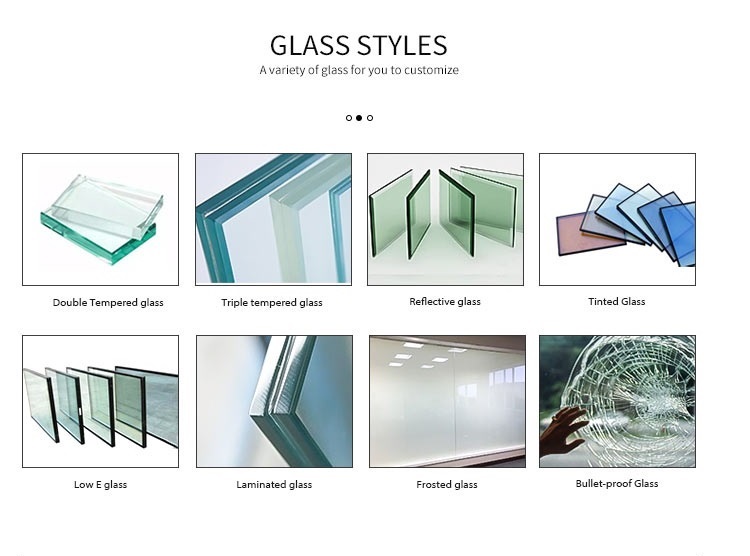

Glass
Single tempered glass  4mm or 5mm
Surface treatment
Powder coating
Color
Option  Clear , Frosted, Acid etc
Size
Option  Black , White, Grey  etc

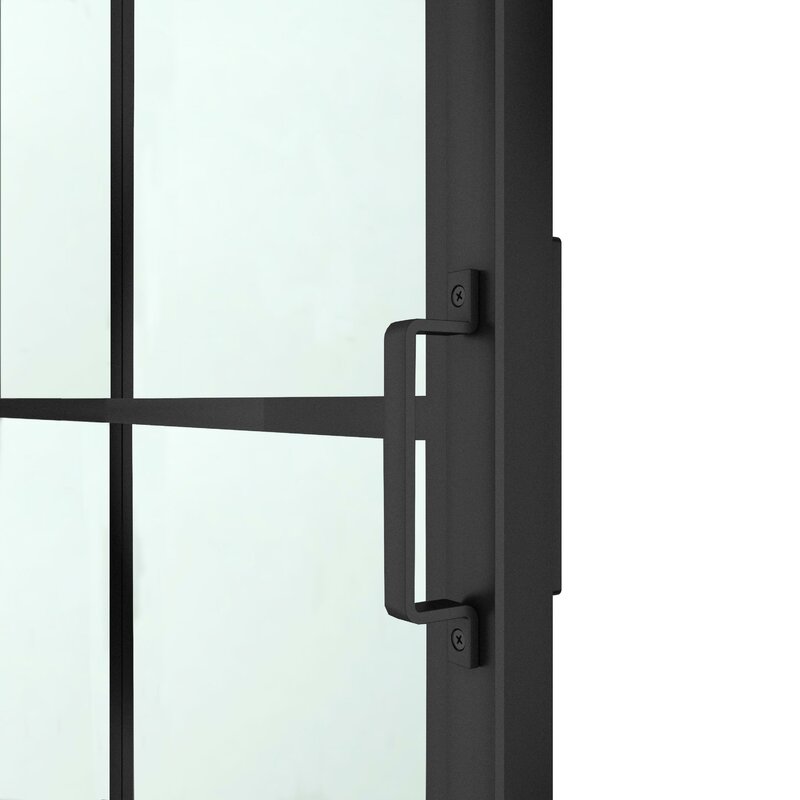

Handle
Customized handle  ;  steel handle or  aluminum knob

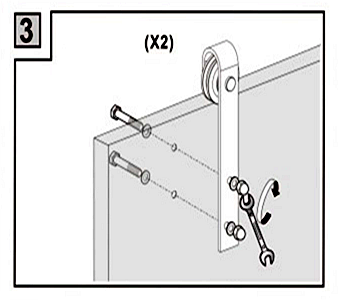

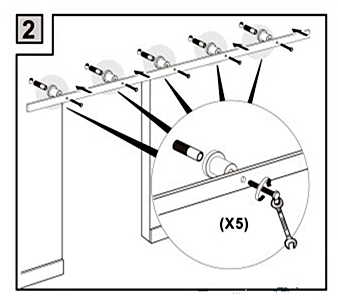

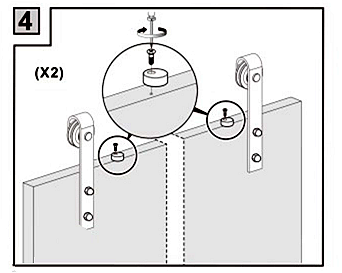

Hardware kit
Customized roller style  ;  Top loading type , Horseshoe shape, Elongated etc
Q1: WHAT IS YOUR MAIN PRODUCT?
A: We can supply the Steel door , barn door , shower room , aluminium complete system (including profile, glass, hardware, accessories) as well as the finished products  ready for installation.
Q2: WHAT’S YOUR PRICE?
A: The price is based on buyer’s specific requirement, so please provide below information to help us quote exact price to you.

1) Shop drawing / window schedule to show the window opening way, dimensions, quantity ;

2) Option color /size
3) thickness of glass ( 4mm or 5mm or double glass 5+9a+5mm else)
4) colour of glass (clear, tinted, reflective, Low-E or others, with Argon or without).
Q3: WHAT IS THE STANDARD SIZE OF YOUR WINDOWS AND DOORS?
A: Our product is CUSTOMER MADE. We always manufacture windows and doors according to buyer’s dimensions.
Q4: WHAT IS YOUR DELIVERY TIME?
A: For the series we stocked 20 working days with 300 sets , For the series unstocked 40 working days with 600 sets
Q5: WHAT IS YOUR PAYMENT TERMS?
A: 30% – 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container.
Q6: WILL WE NEED TO INSTALL THE GLASS (ONSITE GLAZED) OR DO YOUR WINDOWS COME WITH THE GLASS INSTALLED?
A: We will install glass at factory based on windows/doors dimension to make sure they can be safe during transportation and if
easy for you to install the whole windows/doors on site glazed are recommended for big sized products.
Q7: WHAT IS YOUR WARRANTY ? WHAT DO WE DO IN CASE OF PROBLEMS?
A: 5 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under
correct operation.
In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts
with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days.
Q8: WHAT KIND OF SERVICE WILL YOU PROVIDE?
A: We are able to provide the engineering as well as supervising service to guide installation our windows and doors, curtain wall
as well.
Size

24 X 108, 24 X 98, 28 X 84, 28 X 96
Swing

Left Hand Outswing

Doors

  • 12 Gauge Galvanized Steel With Hand Forged Solid 5/8" Scroll-Work
  • 2" Thick Door With Thermal Insulating Polyurethane Foam Injected For Insulation
  • Door & Window Sill Sloped Down To Let Water Run Out
  • Pre-hung From Factory For Easy Installation

Jambs & Hinges

  • 6" Jamb Injected With Polyurethane Foam For Thermal Regulation
  • Heavy Duty Aerospace Grade Bullet Hinges With Zerk For Adding Grease
  • Hinges Strong Enough To Support 1500 Pounds
  • One Piece Jamb That Supports Weight Of Doors

Glass

  • 5/8" Double Pane Insulated Tempered Glass
  • Glass Already Installed In The Door For Easy Installation
  • Glass Can Operate Independently From Door To Allow For Ventilation And Cleaning
  • Choose Custom Glass Options For Preference,  Efficiency, & Privacy

Finishes

  • Zinc Galvanized To Prevent Rust
  • Epoxy Primer & 2 Epoxy Coats To Prevent Rust & Weatherization
  • Hand Painted Using Professional Automotive Acrylic Paint With Faux Finishes
  • Polyurethane Clear Coat To Add Durability & Preserve Finish

Weatherization

  • Vinyl Clad Weather Stripping Around
    Doors and T-astragal For Air Tight Seal
  • Attached Threshold That Slopes Down To Let Water Run Out
  • Heavy Duty Door Sweep Pre-Installed On Door
  • Air Tight Kerf Weather Stripping Around Glass Panels

Hardware

  • Standard US Bore Holes To Allow Customer To Choose Handle & Locks
  • 2 1/8" Boring
  • 2 3/4" Backset
  • 5 1/2" Center To Center
  • Handles & Locks Sold Separately

All Accessories Come Included & Installed On Door For Easy Installation

Steel

12 Gauge Steel With 2" Door Slab With Solid Steel Scrollwork

Insulation

Injected Polyurethane Foam For Maximum Climate Control

Glass

5/8" Dual Pane Tempered Glass For Safety

Flush Bolts

Top & Bottom Flush Bolts For Locking Stationary Door

Roller Catch

Top & Bottom Roller Catches On Active Door For Smooth Opening

Hinges

Aerospace Grade Bullet Hinges With Zerk Top For Grease

Weather-Stripping

Heavy Duty Kerf Weather-Stripping For Air Tight Seals & Sound Insulation

Mounting Tabs

Mounting Tabs Welded To Frame For Easy Installation

Boreholes

Pre-Drilled Boreholes For Handles & Locks

Threshold

1 1/2" Welded Sloping Threshold Attached To Door Jamb

Window Knob

Durable Window Knobs For Easy To Open Operable Glass

Door Sweep

Bottom Door Sweep Attached For An Air Tight Seal

Iron Door Sizes Include Frame and Threshold

Width - Door width is measured from the outer door jamb(frame) to jamb(frame)
Height - Door high is measured from top of frame to bottom of threshold

Example: 1495*2080mm double door will include the frame/jamb in this measurement

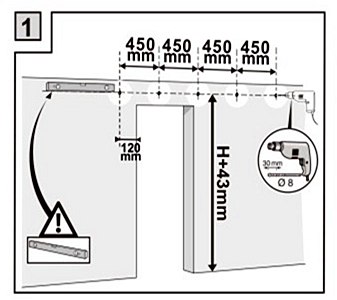

Recommended rough opening to be at least 20mm or 1" wider and 10mm or 1/2" taller than the iron door to allow for adjustment during installation
150mm/6" jamb is standard for 2x4 walls. If you have 2x6 walls, you may want to consider a custom order with an 200mm/8" jamb or use trim
Please Consult With Your Contractor Or Builder Before Purchasing
